PR30-15DN Autonics Inductive Proximity Sensor

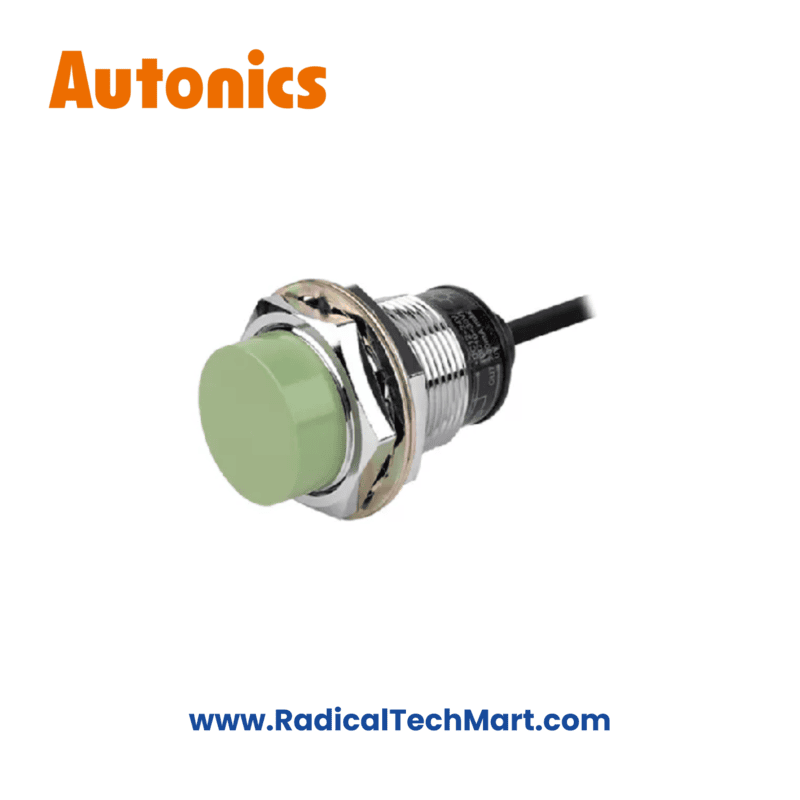

Autonics PR30-15DN Inductive Proximity Sensor – M30, 15 mm, NPN, DC 3-Wire
Autonics PR30-15DN is an M30 inductive proximity sensor with a 15 mm sensing distance and NPN DC 3-wire output.
Designed for long-range metal detection in heavy industrial automation and PLC-based systems.
The Autonics PR30-15DN is a heavy-duty inductive proximity sensor engineered to detect metal objects only at a long sensing distance. Featuring a robust M30 threaded housing, 15 mm sensing range (non-flush), and NPN DC 3-wire output, it is ideal for conveyors, steel plants, heavy machinery, and PLC-controlled industrial automation systems.
Key Features
Detects metal objects only (inductive principle)
Heavy-duty M30 cylindrical housing
15 mm sensing distance (non-flush / unshielded)
NPN, DC 3-wire output
Red LED operation indicator
Reverse polarity & short-circuit protection
Stable sensing with high repeatability
IP67 protection for harsh industrial environments
Technical Specifications
| Parameter | Value |
|---|---|
| Model | PR30-15DN |
| Sensor Type | Inductive Proximity Sensor |
| Housing Size | M30 |
| Installation | Non-Flush (Unshielded) |
| Sensing Distance | 15 mm |
| Setting Distance | 0 – 10.5 mm |
| Standard Target | Iron 30 × 30 × 1 mm |
| Output Type | NPN |
| Wiring | DC 3-Wire |
| Supply Voltage | 12–24 V DC (10–30 V DC operating) |
| Current Consumption | ≤ 10 mA |
| Control Output | Max. 200 mA |
| Response Frequency | Approx. 100 Hz |
| Indicator | Red LED |
| Protection Rating | IP67 |
| Ambient Temperature | −25 °C to +70 °C |
| Cable Length | 2 m |
| Body Material | Nickel-plated brass |
| Sensing Face | PBT |
Applications
PLC-based automation systems
Conveyors & material handling
Steel, cement & heavy machinery
Mining & bulk handling equipment
Packaging & assembly lines
Position, limit & presence detection
What’s in the Box
1 × Autonics PR30-15DN Sensor
2 × Mounting nuts
1 × Washer
Instruction leaflet
FAQ
Q1. What material can PR30-15DN detect?
Only metal objects (inductive sensing).
Q2. What is the difference between PR30-10DN and PR30-15DN?
PR30-15DN provides a longer sensing distance (15 mm) compared to 10 mm.
Q3. Is this suitable for PLC inputs?
Yes. It has NPN DC 3-wire output, commonly used with PLC digital inputs.
Q4. Can it be used in harsh industrial environments?
Yes. IP67 protection ensures reliable operation in dusty and oily areas.
Q5. What is the sensing distance?
15 mm for a standard iron target.
